Luxmetru portabil de performanta cu sonde interschimbabile, Model HD2302.0

deltaohm

260.00  + TVA

Luxmetru profesional pentru domeniile spectrale VIS-NIR, UVA, UVB și UVC
Model: HD2302.0
Unități de măsură: lux – fcd – µmol/m²·s – cd/m2 – W/m² – µW/cm² – µW/lumen
*Disponibil la cerere!
*Prețul nu include transportul!
*Prețul total și Termenul de livrare este comunicat clienților prin telefon sau e-mail!

Disponibil pentru precomandă

SKU: HD2302.0 Categorie: Etichete: , ,

Descriere

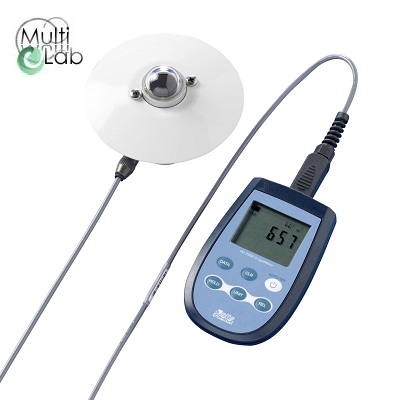

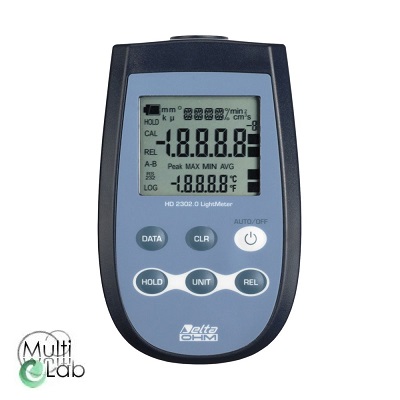

HD2302.0 este un instrument portabil cu un afișaj LCD mare. Acesta măsoară iluminarea, luminanța, PAR și iradierea (în regiunile spectrale VIS-NIR, UVA, UVB și UVC sau măsurarea iradierii efective în conformitate cu curba de acțiune UV). Sondele sunt echipate cu modulul de detecție automată SICRAM: pe lângă detecție, selecția unității de măsură este, de asemenea, automată. Datele de calibrare din fabrică sunt deja memorate în interiorul instrumentelor. Funcția Max, Min și Avg calculează valorile maxime, minime sau medii. Alte funcții includ: măsurarea relativă REL, funcția HOLD și oprirea automată care poate fi, de asemenea, exclusă. Instrumentele au gradul de protecție IP67.

Date tehnice:

Model HD2302.0
Dimensiuni 140x88x38mm
Greutate 160 g
Material ABS
Display 2×4½ digits plus simboluri – 52x42mm
Condiții de operare
Temperatură de operare -5…50°C
Temperatură de depozitare -25…65°C
Umiditate relativă 0…90%RH fără condens
Clasă de protecție IP67
Alimentare
Baterii 3 baterii tip AA 1.5V
Autonomie 200 ore cu baterii alcaline 1800 mAh
Unități de măsură lux – fcd – µmol/m²·s – cd/m² – W/m² – µW/cm² – µW/lumen
Conexiuni
Input module for the probes 8-pole male DIN45326 connector

Certificate asociate:
Certificat de conformitate
Certificat de garanție

Conținut pachet:
Se livrează cu husă de transport, manual de instrucțiuni, 3 baterii.

*NB: Sondele trebuie să fie comandate separat. Sunt adecvate sondele din seria LP471 cu modul SICRAM.

Marca

Delta Ohm

deltaohm

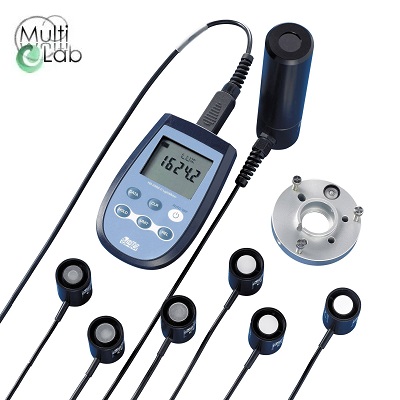

Sonde compatibile

  • LP471PHOT – Photometric probe for measuring the ILLUMINANCE, spectral response according to the photopic curve, class B according to CIE N° 69, cosine correction diffuser. Measuring range: 0.1 lux … 200·103 lux. Cable length 2 m.
  • LP471RAD – Radiometric probe for measuring the IRRADIANCE in the spectral range 400 nm…1050 nm, cosine correction diffuser. Measuring range: 1.0⋅10-3 W/m2 … 2000 W/m2. Cable length 2 m.
  • LP471PAR – Quantum-radiometric probe for measuring the PHOTONS FLOW in the chlorophyll field PAR (photosynthetically Active Radiation 400 nm…700 nm), μmol m-2s-1 measure, cosine correction diffuser. Measuring range 0.1 μmol m-2s-1…10·103 μmol m-2s-1. Cable length 2 m.
  • LP471PAR02 – Quantum-radiometric probe for measuring the PHOTONS FLOW in the chlorophyll field PAR (photosynthetically Active Radiation 400…700 nm), μmol m-2s-1 measure, opaline quartz diffuser for cosine correction. The probe uses a special filter that optimizes the spectral response. Measuring range 0.1 μmol m-2s-1…10·103 μmol m-2s-1. Cable length 2 m.
  • LP471UVA – Radiometric probe for measuring the IRRADIANCE in the UVA spectral range 315nm…400nm, peak at 360nm, quartz diffuser for cosine correction. For non-destructive testing ISO 3059:2001, EN 571-1, ASTM E1417. Measuring range: 1.0⋅10-3 W/m2 … 2000 W/m2. Cable length 2 m.
  • LP471UVB – Radiometric probe for measuring the IRRADIANCE in the UVB spectral range 280 nm…315 nm, peak at 305nm, quartz diffuser for cosine correction. Measuring range: 1.0⋅10-3 W/m2 … 2000 W/m2. Cable length 2 m.
  • LP471UVC – Radiometric probe for measuring the IRRADIANCE in the UVC spectral range 220 nm…280 nm, peak at 260nm, quartz diffuser for cosine correction. Measuring range: 1.0⋅10-3 W/m2 … 2000 W/m2. Cable length 2 m.
  • LP471UVBC – Radiometric probe for measuring the IRRADIANCE in the UV-BC spectral range 210 nm…355 nm, peak at 265nm, quartz diffuser for cosine correction. Measuring range: 1.0⋅10-3 W/m2 … 2000 W/m2. Cable length 2 m.
  • LP471LUM2 – Photometric probe for measuring the LUMINANCE, spectral response according to the photopic curve, angular field 2°. Measuring range: 1 cd/m2 … 2000·103 cd/m2. Cable length 2 m.
  • LP471BLUE – Radiometric probe for EFFECTIVE IRRADIANCE measurement in the spectral range of Blue light complete with SICRAM module. Spectral range 380nm…550nm, diffuser for cosine correction. Measurement range: 1 mW/m2 … 2000 W/m2. Cable length 2 m.
  • LP471P-A – Combined probe for measuring the ILLUMINANCE (lux), with standard photopic spectral response, and for measuring the IRRADIANCE (W/m2) in the UVA spectral range (315…400 nm, with peak at 365 nm). Both sensors are equipped with diffuser for the correction according to the cosine law. Illuminance measuring range: 0.3 lux…200⋅103 lux. Irradiance measuring range: 1.0⋅10-3 W/m2…2000 W/m2. The probe provides the ratio of the UVA irradiance and the illuminance in μW/lumen (quantity of interest in the museums field). CIE 157. Supplied with SICRAM module and 2 m cable. The probe works with the instruments DO9847 (from rev. R.1), HD31, HD2302.0 (from rev. 01), HD2102.1 (from rev. 11) and HD2102.2 (from rev. 21).
  • LP471A-UVeff – Combined probe for measuring the TOTAL EFFECTIVE IRRADIANCE according to the weighting curve UV. The two sensors are used to correctly measure the total effective irradiance in the range 250…400 nm. Both sensors are equipped with diffuser for the correction according to the cosine law. The probe provides the total effective irradiance (Eeff), the effective irradiance in the range UV-CB and the UVA irradiance. Total effective irradiance measuring range: 0.01 W/m2…20 W/m2. B_C effective irradiance measuring range: 0.01 W/m2…20 W/m2. UVA irradiance measuring range: 0.1 W/m2…2000 W/m2. Supplied with SICRAM module and 2 m cable. The probe works with the instruments DO9847 (from rev. R.1), HD31, HD2302.0 (from rev. 01), HD2102.1 (from rev. 11) and HD2102.2 (from rev. 21).
  • LP471SILICON-PYRA – Pyranometer with silicon photodiode to measure the GLOBAL SOLAR IRRADIANCE, diffuser for cosine correction. Spectral range: 400…1100 nm. Measuring range: 0…2000 W/m2. Fixed cable 5m long, with SICRAM module.
  • LP471PYRA 03.5 – Probe consisting of Spectrally Flat Class C (Second Class) pyranometer LPPYRA03 and a 5m long cable complete with SICRAM module. The calibration report of the pyranometer connected to the cable with SICRAM module is included.
  • LP471PYRA02.5 – Probe consisting of a Spectrally Flat Class B (First Class) pyranometer LPPYRA02 and a 5m long cable complete with SICRAM module. The calibration report of the pyranometer connected to the cable with SICRAM module is included.
  • LP471PYRA10.5 – Probe consisting of a Spectrally Flat Class A (Secondary Standard) pyranometer LPPYRA10 and a 5m long cable complete with SICRAM module. The calibration report of the pyranometer connected to the cable with SICRAM module is included.
