Descriere

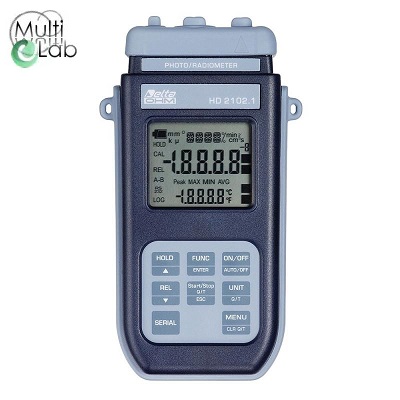

HD2102.1 este un instrument portabil cu un afișaj LCD mare. Acesta măsoară iluminarea, luminanța, PAR și iradierea (în toate regiunile spectrale VIS-NIR, UVA, UVB și UVC sau măsurarea iradierii efective în conformitate cu curba de acțiune UV). Sondele sunt echipate cu modulul de detecție automată SICRAM: pe lângă detecție, selecția acestei unități de măsură este, de asemenea, automată. Datele de calibrare din fabrică sunt deja stocate în interiorul instrumentului. Pe lângă măsurarea instantanee, instrumentul calculează integrala de timp Q(t) a măsurătorilor achiziționate. Unele praguri pot fi asociate cu măsurarea integrată și cu timpul de integrare, care pot fi setate în meniu. Atunci când sunt depășite, aceste praguri determină instrumentul să oprească calculul integralei.
Modelul HD2102.1 este echipat cu un port serial RS232C și poate transfera măsurătorile achiziționate în timp real către un PC sau către o imprimantă portabilă. Funcțiile Max, Min și Avg calculează valorile maxime, minime sau medii. Alte funcții includ: REL de măsurare relativă, funcția HOLD și oprirea automată care poate fi, de asemenea, exclusă.
Date tehnice:
| Model |
HD2102.1 |
| Dimensiuni |
185x90x40mm |
| Greutate |
470 g |
| Materiale |
ABS, cauciuc |
| Display |
2×4½ digiți plus simboluri, 52x42mm |
| Condiții de operare |
| Temperatură de operare |
-5…50°C |
| Temperatură de stocare |
-25…65°C |
| Umiditate relativă |
0…90%RH fără condens |
| Clasă de protecție |
IP66 |
| Alimentare |
| Baterii |
4 baterii 1.5V tip AA |
| Autonomie |
200 ore cu baterii alcaline 1800mAh |
| Mains |
Output mains adapter 12Vdc / 1000mA |
| Unități de măsură |
lux – fcd – lux·s – fcd·s – W/m² – µW/cm² – J/m² – µJ/cm² – µmol/(m²·s) – µmol/m² – cd/m² – µW/lumen |
| Securitatea datelor memorate |
nelimitat, independent de condițiile de încărcare a bateriei |
| Interfață serială RS232C |
| Tip |
RS232C izolat electric |
| Baud rate |
poate fi setat de la 1200 la 38400 bauds |
| Bit de date |
8 |
| Paritate |
Niciuna |
| Bit de oprire |
1 |
| Controlul fluxului |
Xon/Xoff |
| Lungimea cablului serial |
Max. 15 m |
| Interval de imprimare |
imediat sau selectabil între: 1s, 5s, 10s,15s, 30s, 1min, 2min, 5min, 10min, 15min, 20min, 30min și 1h. |
| Conexiuni |
| Input module for the probes |
8-pole male DIN45326 connector |
| RS232 serial interface |
8-pole MiniDin connector |
| USB serial interface |
B-type MiniUSB connector |
| Mains adapter |
2-pole connector (positive at centre) |
Certificate asociate:
Certificat de conformitate
Certificat de garanție
Conținut pachet:
HD2102.1 se livrează cu husă de transport, manual de instrucțiuni, 4 baterii. Include software-ul DeltaLog9 care poate fi descărcat de pe site-ul web Delta OHM.
*NB: Sondele și cablurile pentru descărcarea datelor trebuie să fie comandate separat. Sunt adecvate sondele din seria LP471 cu modul SICRAM. Pentru o ofertă personalizată, vă rugăm să ne contactați folosind formularul de contact sau pe e-mail la adresa: info@labshop.ro / info@multilab.ro.

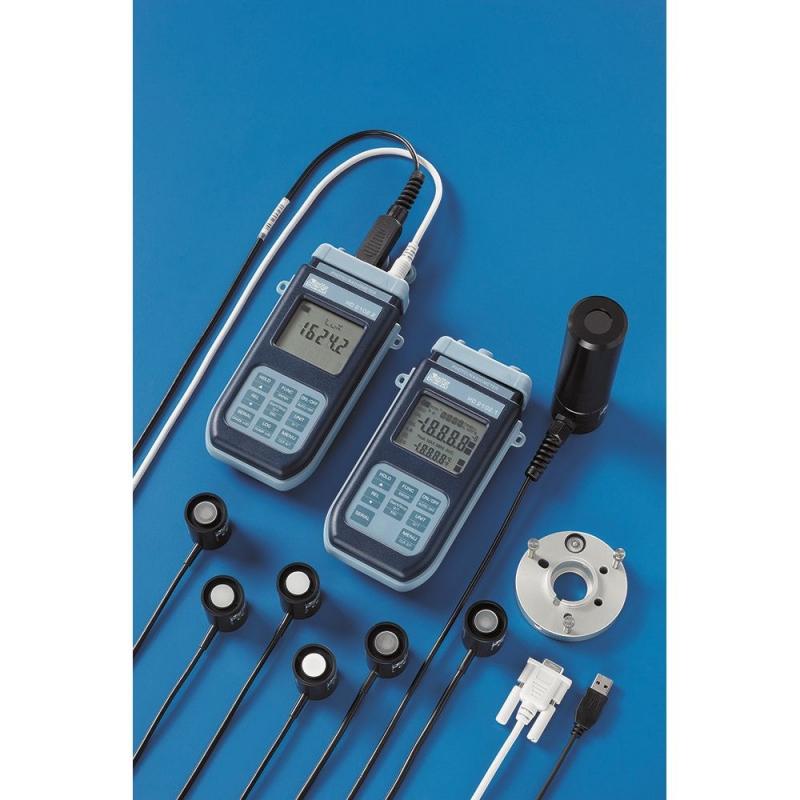

Sonde compatibile
- LP471PHOT – Photometric probe for measuring the ILLUMINANCE, spectral response according to the photopic curve, class B according to CIE N° 69, cosine correction diffuser. Measuring range: 0.1 lux … 200·103 lux. Cable length 2 m.
- LP471RAD – Radiometric probe for measuring the IRRADIANCE in the spectral range 400 nm…1050 nm, cosine correction diffuser. Measuring range: 1.0⋅10-3 W/m2 … 2000 W/m2. Cable length 2 m.
- LP471PAR – Quantum-radiometric probe for measuring the PHOTONS FLOW in the chlorophyll field PAR (photosynthetically Active Radiation 400 nm…700 nm), μmol m-2s-1 measure, cosine correction diffuser. Measuring range 0.1 μmol m-2s-1…10·103 μmol m-2s-1. Cable length 2 m.
- LP471PAR02 – Quantum-radiometric probe for measuring the PHOTONS FLOW in the chlorophyll field PAR (photosynthetically Active Radiation 400…700 nm), μmol m-2s-1 measure, opaline quartz diffuser for cosine correction. The probe uses a special filter that optimizes the spectral response. Measuring range 0.1 μmol m-2s-1…10·103 μmol m-2s-1. Cable length 2 m.
- LP471UVA – Radiometric probe for measuring the IRRADIANCE in the UVA spectral range 315nm…400nm, peak at 360nm, quartz diffuser for cosine correction. For non-destructive testing ISO 3059:2001, EN 571-1, ASTM E1417. Measuring range: 1.0⋅10-3 W/m2 … 2000 W/m2. Cable length 2 m.
- LP471UVB – Radiometric probe for measuring the IRRADIANCE in the UVB spectral range 280 nm…315 nm, peak at 305nm, quartz diffuser for cosine correction. Measuring range: 1.0⋅10-3 W/m2 … 2000 W/m2. Cable length 2 m.
- LP471UVC – Radiometric probe for measuring the IRRADIANCE in the UVC spectral range 220 nm…280 nm, peak at 260nm, quartz diffuser for cosine correction. Measuring range: 1.0⋅10-3 W/m2 … 2000 W/m2. Cable length 2 m.
- LP471UVBC – Radiometric probe for measuring the IRRADIANCE in the UV-BC spectral range 210 nm…355 nm, peak at 265nm, quartz diffuser for cosine correction. Measuring range: 1.0⋅10-3 W/m2 … 2000 W/m2. Cable length 2 m.
- LP471LUM2 – Photometric probe for measuring the LUMINANCE, spectral response according to the photopic curve, angular field 2°. Measuring range: 1 cd/m2 … 2000·103 cd/m2. Cable length 2 m.
- LP471BLUE – Radiometric probe for EFFECTIVE IRRADIANCE measurement in the spectral range of Blue light complete with SICRAM module. Spectral range 380nm…550nm, diffuser for cosine correction. Measurement range: 1 mW/m2 … 2000 W/m2. Cable length 2 m.
- LP471P-A – Combined probe for measuring the ILLUMINANCE (lux), with standard photopic spectral response, and for measuring the IRRADIANCE (W/m2) in the UVA spectral range (315…400 nm, with peak at 365 nm). Both sensors are equipped with diffuser for the correction according to the cosine law. Illuminance measuring range: 0.3 lux…200⋅103 lux. Irradiance measuring range: 1.0⋅10-3 W/m2…2000 W/m2. The probe provides the ratio of the UVA irradiance and the illuminance in μW/lumen (quantity of interest in the museums field). CIE 157. Supplied with SICRAM module and 2 m cable. The probe works with the instruments DO9847 (from rev. R.1), HD31, HD2302.0 (from rev. 01), HD2102.1 (from rev. 11) and HD2102.2 (from rev. 21).
- LP471A-UVeff – Combined probe for measuring the TOTAL EFFECTIVE IRRADIANCE according to the weighting curve UV. The two sensors are used to correctly measure the total effective irradiance in the range 250…400 nm. Both sensors are equipped with diffuser for the correction according to the cosine law. The probe provides the total effective irradiance (Eeff), the effective irradiance in the range UV-CB and the UVA irradiance. Total effective irradiance measuring range: 0.01 W/m2…20 W/m2. B_C effective irradiance measuring range: 0.01 W/m2…20 W/m2. UVA irradiance measuring range: 0.1 W/m2…2000 W/m2. Supplied with SICRAM module and 2 m cable. The probe works with the instruments DO9847 (from rev. R.1), HD31, HD2302.0 (from rev. 01), HD2102.1 (from rev. 11) and HD2102.2 (from rev. 21).
- LP471SILICON-PYRA – Pyranometer with silicon photodiode to measure the GLOBAL SOLAR IRRADIANCE, diffuser for cosine correction. Spectral range: 400…1100 nm. Measuring range: 0…2000 W/m2. Fixed cable 5m long, with SICRAM module.
- LP471PYRA 03.5 – Probe consisting of Spectrally Flat Class C (Second Class) pyranometer LPPYRA03 and a 5m long cable complete with SICRAM module. The calibration report of the pyranometer connected to the cable with SICRAM module is included.
- LP471PYRA02.5 – Probe consisting of a Spectrally Flat Class B (First Class) pyranometer LPPYRA02 and a 5m long cable complete with SICRAM module. The calibration report of the pyranometer connected to the cable with SICRAM module is included.
- LP471PYRA10.5 – Probe consisting of a Spectrally Flat Class A (Secondary Standard) pyranometer LPPYRA10 and a 5m long cable complete with SICRAM module. The calibration report of the pyranometer connected to the cable with SICRAM module is included.
Pentru o ofertă personalizată vă rugăm să ne contactați folosind formularul de contact sau pe e-mail la adresa: info@labshop.ro / info@multilab.ro.
Accesorii opționale
- DELTALOG9 – USB flash drive of DeltaLog9 software for downloading and PC data management for Windows® operating systems for instruments HD2102.1 HD2102.2
- C.206 – Serial connection cable with USB connector for PC and 8-pole MiniDin male connector for the instrument. The cable has a built-in USB/RS232 converter and connects the instrument HD2102.1 directly to the USB port of the PC.
- HD2110CSNM – MiniDin 8 poles – 9 poles sub D female connecting cable per RS232C for instruments HD2102.1, HD2102.2
- HD40.1 – 24-column portable thermal printer, serial interface, 57mm paper width, four NiMH 1.2V rechargeable batteries, SWD10 power supply, instruction manual, 5 thermal paper rolls. Connection cable HD2110CSNM as option. Not suitable for DO9721.
- BAT-40 – Spare battery pack for HD40.1 printer with built-in temperature sensor.
- RCT – The kit includes 4 thermal paper rolls 57mm wide and 32mm in diameter.
- SWD10 – Stabilized power supply 100-240 Vac/12Vdc-1A mains voltage
